Handheld Compact Omnidirectional Barcode Scanner Module ABS CMOS Auto Sense
DS5220BD-2D is an industrial handheld 2D wireless barcode scanner with a display screen. It has excellent reading performance and can easily read barcodes on different media such as paper, commodities, and screen.
This product adopts enhanced wireless 2.4G transmission technology, the effective distance of outdoor open environment can reach more than 60 m, and it can support both wired and wireless transmission methods.
The screen can display barcode data , product name and price information, the current time, wireless (wired) status, wireless working mode, charging status and battery power, total stored data. The total number of decoding (the maximum count shows 99999), the number of pieces of data and the total number of times can be cleared by scanning the setting codes.
It can be mainly used in industrial production, mobile payment, commodity barcode scanning, inventory, etc.
> Highly integrated two-dimensional decoding structure, anti-drop, anti-vibration.
> Using high-performance MCU, it can easily identify all mainstream 1D 2D barcodes in the market.
> 300,000 global exposure camera, automatic exposure, suitable for complex use environment.
> Easily read barcodes above 3MIL to meet daily scanning needs.
> Enhanced wireless 2.4G transmission technology, reliable outdoor transmission distance can reach more than 60 m, and support wired transmission without switching.
>Support wireless Bluetooth 4.2 communication mode, support HID, SPP, BLE three communication protocols.
>Support multiple working modes (manual, induction, continuous) to meet different reading needs.
>1.77 inch TFT screen, 128×160, can display up to 96 barcode characters in 6 lines.
>The product name and price information can also be displayed on the TFT screen through the uploaded product information.
>Support online upgrade, custom development and secondary development.
>With vibration prompt, scanning code is clearer.
Performance:
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm(aim), 5600K LED ( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480(global exposure) |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Decoding speed | 65CM/S |
| Depth of field | 10mm~550mm |
| Scan Mode | Manual , Auto Sense,Continuous |
| Prompt method | LED indicator, buzzer |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater) |
| Field of view | Horizontal 41°× Vertical 31° |
| Print Contrast Signal | ≥15% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,100m(Open distance), Bluetooth 30m ( Open distance) |
| Storage | 4Mb(over 15,000 Product code) |
| Battery capacity | 4800mAh |
| Battery charging time | 6.5 h |
| Continuous working time | 36 h |
| Standby time | ≥4 weeks |
| Support systems | Windows,Mac OS,IOS, Linux,Unix,Android |

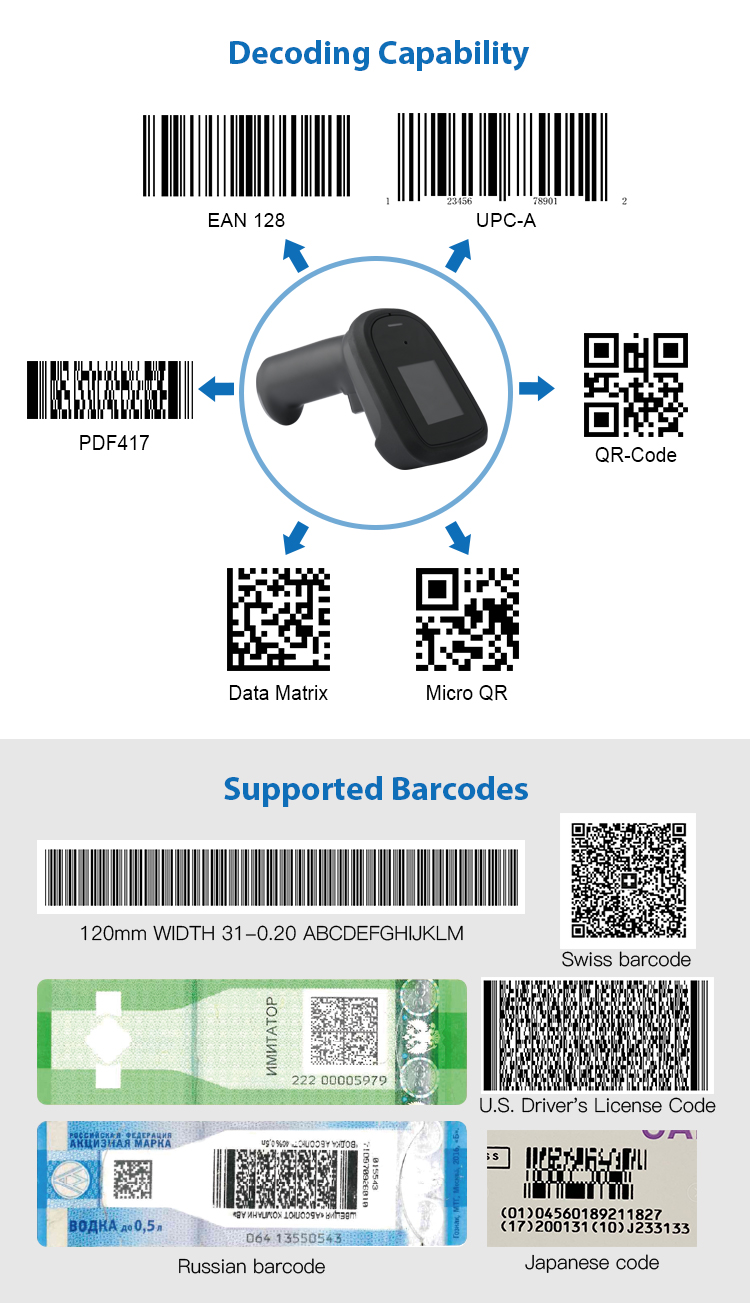

| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
Feature of Handheld QR Code scanner
1. The best shape design, soft rubber cover, shock-proof and shock-proof, more comfortable to operate.
2. Multiple decoding capabilities to quickly scan 1D/2D codes, QR codes and PDF417.
3. Large-capacity battery; the service life of the keys is up to 8 million times.
4. Multi-interface, support USB, RS232 interface, 2.4G receiver.
5. Super decoding ability, decoding rate: 200 times per second
6. Long-distance transmission, support wired and wireless transmission.
7. The keys are comfortable, and the service life of the keys is up to 5 million times
8. Factory direct sales, cheap price, stable scanning
9. No need to drive, easy to use, plug and play
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
